Heats and coolsR32
PTAC

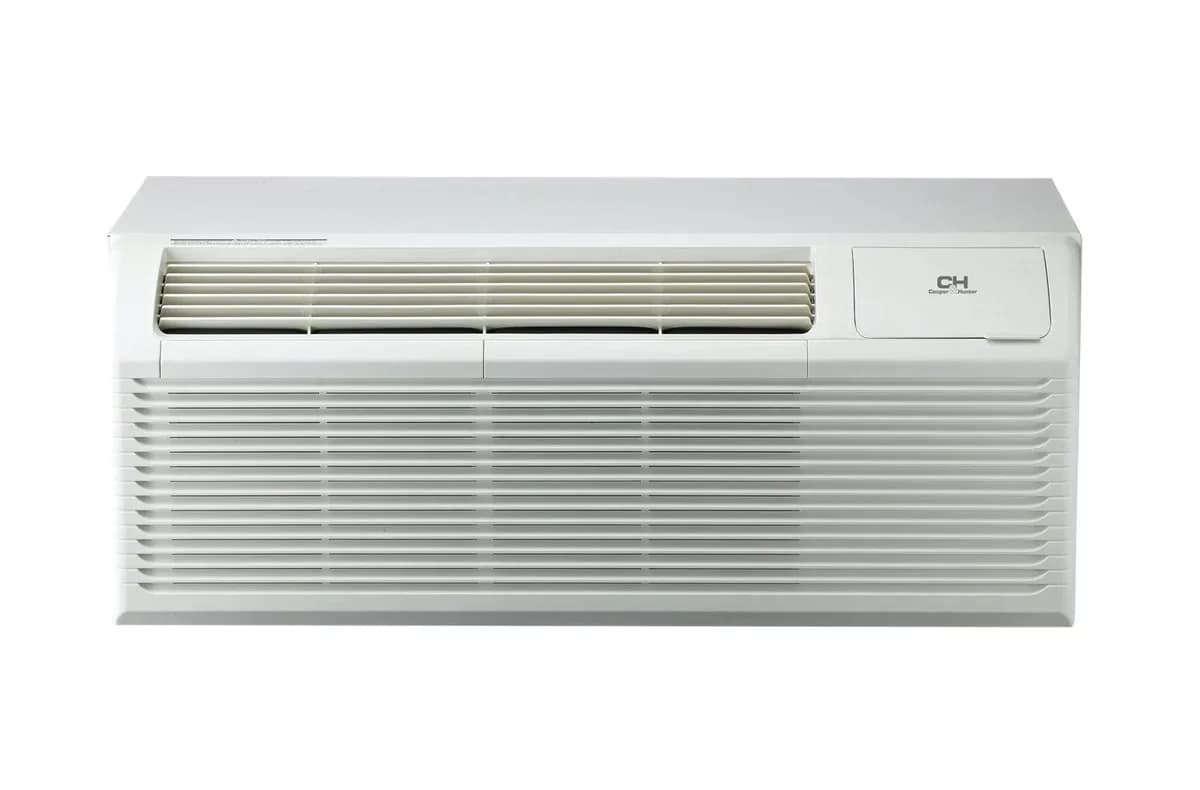

PTAC Heat Pump, 12,000 BTU
A person checks every order before it ships.
- Ships to all 50 states. If anything arrives damaged, we handle the claim.
- New units from an authorized Cooper & Hunter dealer, with the full factory warranty.
- All sales are final. Not sure about the size? Call (417) 812-0015 before you order.
Rated performance
From the spec sheet on file for model CH-PTW12HPGF. Every other figure is in the full spec sheet below.
- Capacity
12,000BTU/h
- Sound
51.5dB(A)
Indoor, lowest fan speed; 52 on high
- Airflow
438CFM
Indoor, top fan speed
- Power
208–230V
Specifications
The full spec sheet
Every value on file for model CH-PTW12HPGF, with units.
Capacity
9 values| Nominal capacity | 12,000 | BTU/h |
|---|---|---|
| Rated cooling capacity | 12,000 | BTU/h |
| Cooling capacity at 208 V | 11,800 | BTU/h |
| Rated heating capacity (47°F) | 10,800 | BTU/h |
| Heat pump heating capacity at 208 V | 10,500 | BTU/h |
| Electric heat capacity at 230 V | 10,900 | BTU/h |
| Electric heat capacity at 208 V | 8,900 | BTU/h |
| Electric heat | 3.5 | kW |
| Electric heat at 208 V | 2.9 | kW |
From the Cooper & Hunter spec sheet.
Efficiency
2 values| EER | 10.5 | |
|---|---|---|
| COP at 47°F | 3.2 | W/W |
From the Cooper & Hunter spec sheet.
Electrical
9 values| Voltage | 208/230 | V |
|---|---|---|
| Phase | 1 | ph |
| Frequency | 60 | Hz |
| Recommended breaker | 20 | A |
| Rated heating current | 5 | A |
| Heat pump heating current at 208 V | 5.3 | A |
| Electric heat current at 230 V | 15.3 | A |
| Electric heat current at 208 V | 13.7 | A |
| Plug | LCDI(6-20P) |
From the Cooper & Hunter spec sheet.
Refrigerant and piping
2 values| Refrigerant | R-32 |
|---|---|
| Compressor type | Rotary |
From the Cooper & Hunter spec sheet.
Dimensions and weight
8 values| Width | 42.01 | in |
|---|---|---|
| Depth | 20.94 | in |
| Height | 15.98 | in |
| Net weight | 110.2 | lb |
| Shipping width | 44.49 | in |
| Shipping depth | 24.61 | in |
| Shipping height | 19.29 | in |
| Shipping weight | 119 | lb |
From the Cooper & Hunter spec sheet.
Sound and airflow
6 values| Indoor sound level (quietest setting) | 51.5 | dB(A) |
|---|---|---|
| Indoor sound level (highest setting) | 52 | dB(A) |
| Outdoor sound level | 67 | dB(A) |
| Indoor airflow (highest setting) | 438 | CFM |
| Indoor airflow (lowest setting) | 344 | CFM |
| Fresh air ventilation | 62 | CFM |
From the Cooper & Hunter spec sheet.
Controls and features
1 value| Ingress protection (IP rating) | IP20 |
|---|
From the Cooper & Hunter spec sheet.
About this unit
What it is and what it needs.

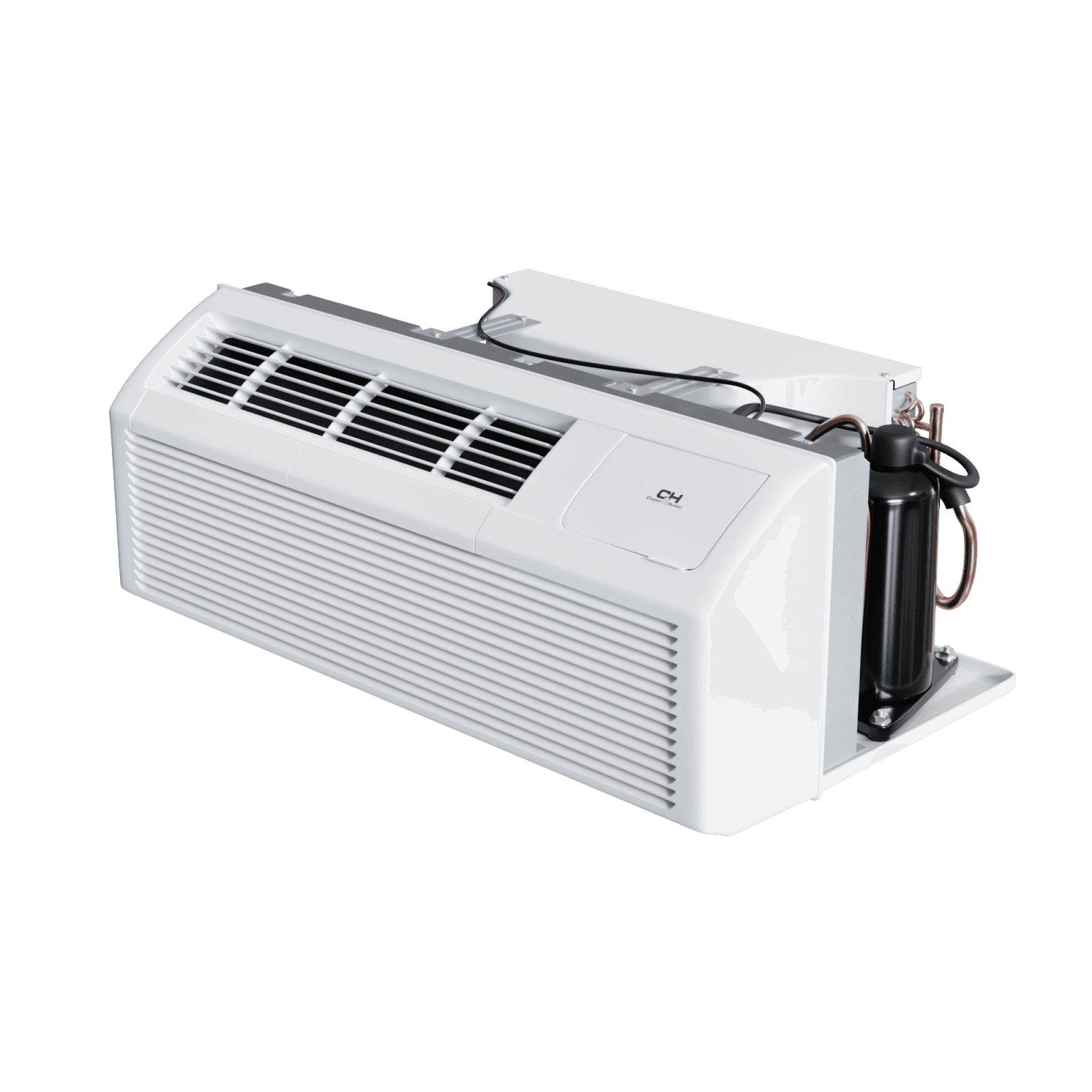

The Cooper & Hunter PTAC Heat Pump, 12,000 BTU is a 12K BTU packaged terminal unit (PTAC) that slides into a sleeve in an exterior wall. The whole system is in one chassis, so there is no outdoor unit or line set to run.
It runs on 208–230 V and uses R32 refrigerant.
Documents
Call before you order.Sizing, pairings, line set lengths and rebates.
Monday to Friday, 8 AM to 5 PM Central
We are in Mountain Grove, Missouri.
Send a messageQuestions
Before you order
Anything else, call (417) 812-0015. Monday to Friday, 8 AM to 5 PM Central.
Can I install it myself?
Mounting, wiring and running the line set are within reach of a capable DIYer. The refrigerant connection and vacuum should be done by a licensed HVAC technician in most states, and manufacturer warranties usually require it. We can point you to an installer in your area.
What if I am not sure about the size?
Room size, ceiling height, insulation, windows and sun exposure all change the answer. Call (417) 812-0015 with the room details and we will confirm the BTU rating before you order.
Can I return it?
No. All sales are final, so size it right first: the builder and the sizing guide are free, and a person confirms the pairing on every order. If anything arrives damaged, we handle the claim for you, and defects are covered by the manufacturer warranty.
What refrigerant does it use?
R32. Match it to any existing equipment or line set you plan to reuse; refrigerants are not interchangeable.
