Heats and coolsR454B
Universal Floor/Ceiling, Floor/ceiling
24K Universal Floor/Ceiling
A person checks this pairing before it ships.
- Ships to all 50 states. If anything arrives damaged, we handle the claim.
- New units from an authorized Cooper & Hunter dealer, with the full factory warranty.
- All sales are final. Not sure about the size? Call (417) 812-0015 before you order.
Rated performance
From the spec sheet on file for model CH-RSH24MFC. Every other figure is in the full spec sheet below.
- Capacity
24,000BTU/h
Cooling runs 12,700 to 25,600 BTU/h
- Efficiency
20.4SEER2
Bar on the catalog's 14 to 28 range
- Sound
34dB(A)
Indoor, lowest fan speed; 49 on high
- Heating
−22°F
Lowest outdoor temperature on this model's spec sheet
- Line set
164ft max
3/8 in and 5/8 in lines, 82 ft max rise
- Airflow
736CFM
Indoor, top fan speed
- Cooling
- −22 to 122 °F
- Heating
- −22 to 75 °F
Will it fit? Front and side, to scale
Drawn from the spec sheet’s indoor dimensions, W × D × H.
- Width
- 42.05 in
- Height
- 9.25 in
- Depth
- 26.57 in
Why this head
From the feature list on file for model CH-RSH24MFC.
- Refrigerant Sensor
- Humidity Sensor
- GoldFin Anti-Corrosive Coating
- Multiple Fan Speeds
- Easy service
- TU1 Cooper Coil
- Can be applied horizontally from the ceiling or
- Inverter technology
Specifications
The full spec sheet
Every value on file for model CH-RSH24MFC, with units.
Capacity
5 values| Nominal capacity | 24,000 | BTU/h |
|---|---|---|
| Rated cooling capacity | 24,000 | BTU/h |
| Cooling capacity range | 12,700 to 25,600 | BTU/h |
| Rated heating capacity (47°F) | 26,000 | BTU/h |
| Heating capacity range (47°F) | 11,300 to 29,500 | BTU/h |
From the Cooper & Hunter spec sheet, with 3 values from the product listing.
Efficiency
5 values| SEER2 | 20.4 | |
|---|---|---|
| EER2 | 12 | |
| HSPF2 (Region IV) | 12.1 | |
| HSPF2 (Region V, cold climate) | 9.8 | |
| COP at 47°F | 3.34 | W/W |
From the Cooper & Hunter spec sheet, with 3 values from the product listing.
Electrical
8 values| Voltage | 208/230 | V |
|---|---|---|
| Phase | 1 | ph |
| Frequency | 60 | Hz |
| Minimum circuit ampacity (MCA) | 2.5 | A |
| Maximum fuse / breaker size | 15 | A |
| Rated cooling current | 10.1 | A |
| Indoor/outdoor communication wire gauge | 14 | AWG |
| Indoor/outdoor communication wire conductors | 4 |
From the Cooper & Hunter spec sheet, with 3 values from the product listing.
Refrigerant and piping
6 values| Refrigerant | R-454B | |
|---|---|---|
| Liquid line size | 3/8 | in |
| Suction (gas) line size | 5/8 | in |
| Condensate drain size | 1 | in |
| Maximum line length | 164 | ft |
| Maximum height difference, indoor to outdoor | 82 | ft |
From the Cooper & Hunter spec sheet, with 3 values from the product listing.
Dimensions and weight
8 values| Width | 42.05 | in |
|---|---|---|
| Depth | 26.57 | in |
| Height | 9.25 | in |
| Net weight | 61.3 | lb |
| Shipping width | 45 | in |
| Shipping depth | 29.7 | in |
| Shipping height | 12.5 | in |
| Shipping weight | 73.2 | lb |
From the Cooper & Hunter spec sheet.
Sound and airflow
4 values| Indoor sound level (quietest setting) | 29 | dB(A) |
|---|---|---|
| Indoor sound level (highest setting) | 51.5 | dB(A) |
| Indoor airflow (highest setting) | 736 | CFM |
| Indoor airflow (lowest setting) | 377 | CFM |
From the Cooper & Hunter spec sheet.
Operating range
4 values| Outdoor operating range, cooling | -22 to 122 | °F |
|---|---|---|
| Outdoor operating range, heating | -22 to 75 | °F |
| Indoor temperature setting, cooling | 60 to 90 | °F |
| Indoor temperature setting, heating | 32 to 86 | °F |
From the Cooper & Hunter spec sheet, with 2 values from the product listing.
Controls and features
1 value| Controller | remote controller |
|---|
From the product listing.
Approved pairings
Outdoor units approved for this head.

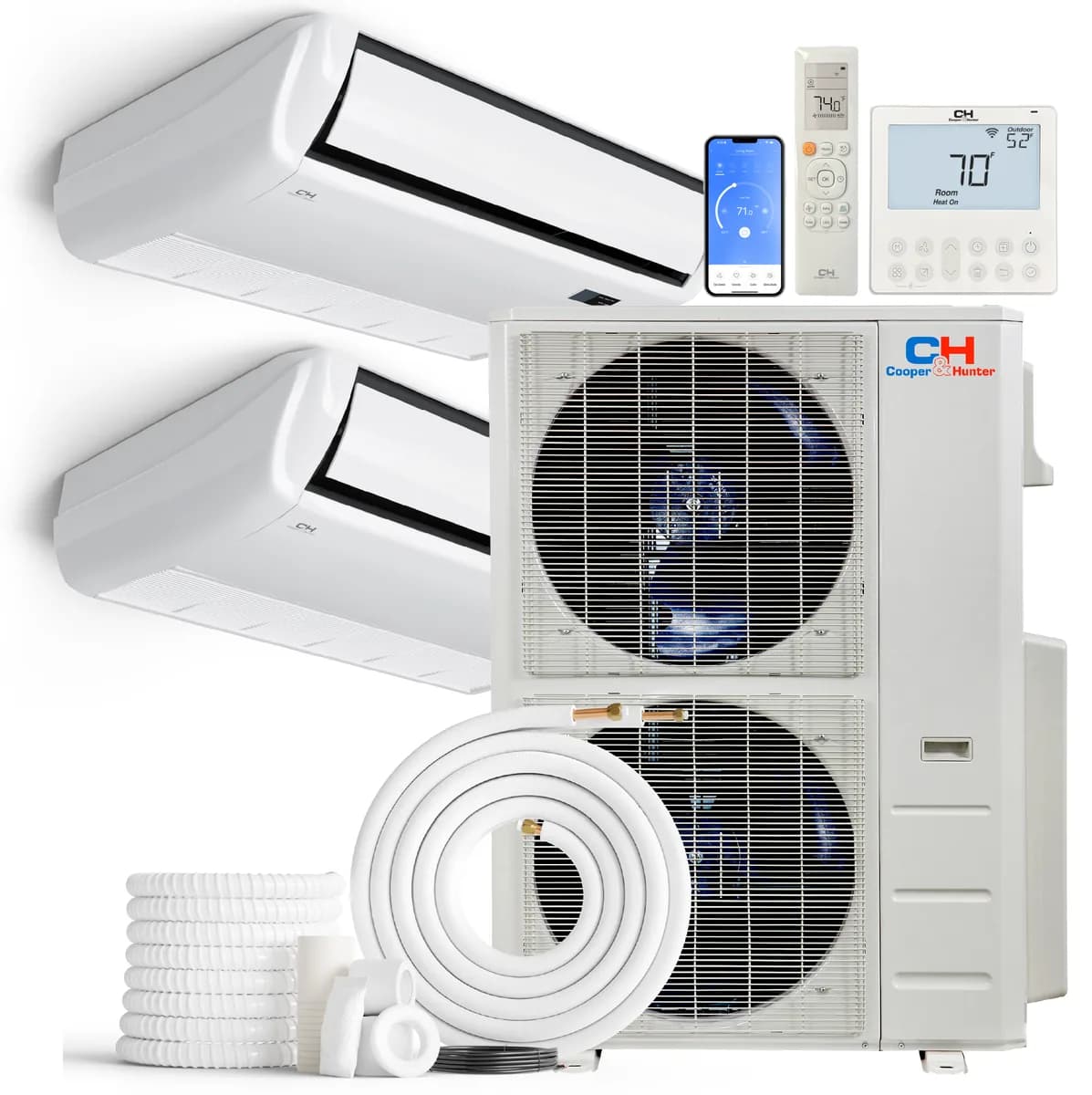

Pair it with one of 2 single-zone outdoor units for one room, or run it as one of the zones on any of 5 multi-zone outdoor units. All 7 are approved for it by Cooper & Hunter.
| Unit | Type | Size |
|---|---|---|
 Regular Outdoor 24KCH-RES24-230VO | Single-zone | 24K BTU |
 Hyper Outdoor 24KCH-RHP24-230VO | Single-zone | 24K BTU |
 Hyper Heat 36K Multi-Zone Outdoor Unit, without Shut-off ValvesCH-RHP36M-230VO | Multi-zone | 36K BTU |
 48K Multi-Zone Outdoor UnitCH-R48MES-230VO | Multi-zone | 48K BTU |
 Hyper Heat 48K Multi-Zone Outdoor Unit, without Shut-off ValvesCH-RHP48M-230VO | Multi-zone | 48K BTU |
| Hyper Heat 55K Multi-Zone Outdoor Unit, without Shut-off ValvesCH-RHP55M-230VO | Multi-zone | 55K BTU |
| 60K Multi-Zone Outdoor UnitCH-R60MES-230VO | Multi-zone | 60K BTU |
About this unit
What it is and what it needs.

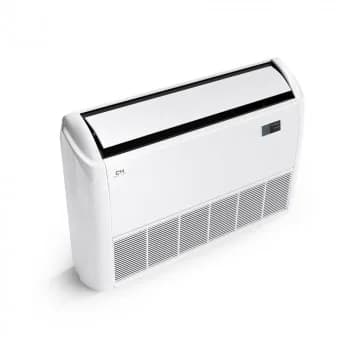

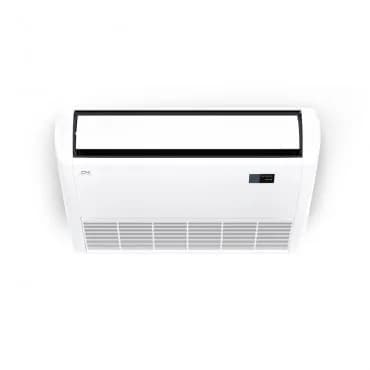

The Cooper & Hunter 24K Universal Floor/Ceiling is a 24K BTU floor or ceiling mounted indoor unit. It needs a matching outdoor unit: 2 single-zone outdoor units and 5 multi-zone outdoor units are approved for it and listed on this page.
It runs on 208–230 V and uses R454B refrigerant. The matched system is rated SEER2 20.4.
Documents
- Spec sheetCH-RES24-230VO with CH-RSH24MFC(PDF, opens in a new tab)
- Spec sheetCH-RHP24-230VO with CH-RSH24MFC(PDF, opens in a new tab)
- Installation manualLCFC(PDF, opens in a new tab)
- Owner's manualUFC R454B(PDF, opens in a new tab)
- Product leafletFloor Ceiling 2025(PDF, opens in a new tab)
- Document(PDF, opens in a new tab)
Call before you order.Sizing, pairings, line set lengths and rebates.
Monday to Friday, 8 AM to 5 PM Central
We are in Mountain Grove, Missouri.
Send a messageQuestions
Before you order
Anything else, call (417) 812-0015. Monday to Friday, 8 AM to 5 PM Central.
Does this work on its own?
No. An indoor head needs a matching outdoor unit from the approved list above. If you are replacing one head on an existing multi-zone system, match the series and refrigerant of the outdoor unit you already have.
Can I install it myself?
Mounting, wiring and running the line set are within reach of a capable DIYer. The refrigerant connection and vacuum should be done by a licensed HVAC technician in most states, and manufacturer warranties usually require it. We can point you to an installer in your area.
What if I am not sure about the size?
Room size, ceiling height, insulation, windows and sun exposure all change the answer. Call (417) 812-0015 with the room details and we will confirm the BTU rating before you order.
Can I return it?
No. All sales are final, so size it right first: the builder and the sizing guide are free, and a person confirms the pairing on every order. If anything arrives damaged, we handle the claim for you, and defects are covered by the manufacturer warranty.
What refrigerant does it use?
R454B. Match it to any existing equipment or line set you plan to reuse; refrigerants are not interchangeable.
