Heats and coolsR454B
PEAQ, Single-zone outdoor unit

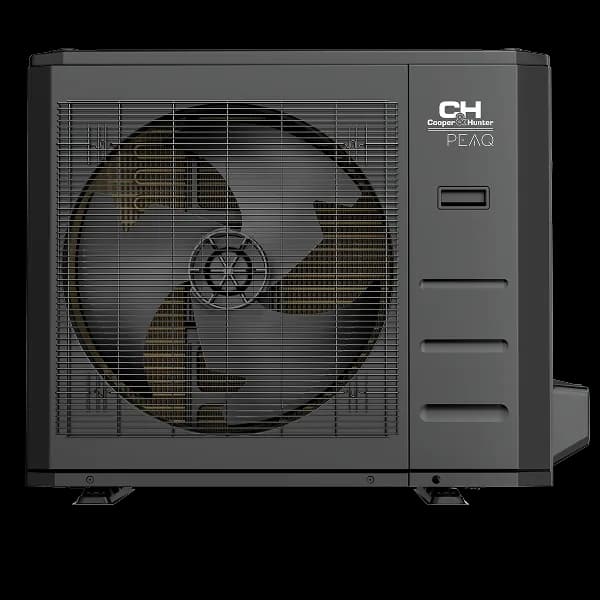

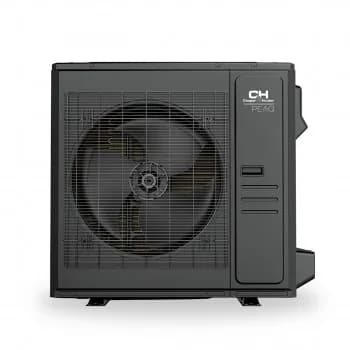

PEAQ 30K Outdoor Unit
A person checks this pairing before it ships.
Rebates for this unitUtility and state programs change by ZIP code.
- Ships to all 50 states. If anything arrives damaged, we handle the claim.
- New units from an authorized Cooper & Hunter dealer, with the full factory warranty.
- All sales are final. Not sure about the size? Call (417) 812-0015 before you order.
Rated performance
From the spec sheet on file for model CH-PQ33-230VO. Every other figure is in the full spec sheet below.
- Capacity
30,000BTU/h
Cooling runs 11,200 to 40,000 BTU/h
- Efficiency
17.2SEER2
Bar on the catalog's 14 to 28 range
- Sound
62dB(A)
Outdoor unit, at full speed
- Heating
−22°F
Lowest outdoor temperature, manufacturer rating
- Line set
164ft max
3/8 in and 3/4 in lines, 82 ft max rise
- HSPF2
10.8
Heating efficiency, region IV
- Cooling
- −22 to 122 °F
- Heating
- −22 to 75 °F
Specifications
The full spec sheet
Every value on file for model CH-PQ33-230VO, with units.
Capacity
5 values| Nominal capacity | 33,000 | BTU/h |
|---|---|---|
| Rated cooling capacity | 30,000 | BTU/h |
| Cooling capacity range | 11,200 to 40,000 | BTU/h |
| Rated heating capacity (47°F) | 33,000 | BTU/h |
| Heating capacity range (47°F) | 9,700 to 35,800 | BTU/h |
From the Cooper & Hunter spec sheet.
Efficiency
5 values| SEER2 | 17.2 | |
|---|---|---|
| EER2 | 12 | |
| HSPF2 (Region IV) | 10.8 | |
| HSPF2 (Region V, cold climate) | 8.8 | |
| COP at 47°F | 3.54 | W/W |
From the Cooper & Hunter spec sheet.
Electrical
7 values| Voltage | 208/230 | V |
|---|---|---|
| Phase | 1 | ph |
| Frequency | 60 | Hz |
| Operating voltage range | 187 to 253 | V |
| Minimum circuit ampacity (MCA) | 29.5 | A |
| Maximum fuse / breaker size | 30 | A |
| Rated cooling current | 12.3 | A |
From the Cooper & Hunter spec sheet, with 1 value from the product listing.
Refrigerant and piping
10 values| Refrigerant | R-454B | |
|---|---|---|
| Factory refrigerant charge | 105.82 | oz |
| Pre-charged for line length up to | 25 | ft |
| Additional charge per extra foot | 0.7 | oz/ft |
| Additional charge per extra foot, 3/8 in. liquid line | 0.7 | oz/ft |
| Liquid line size | 3/8 | in |
| Suction (gas) line size | 3/4 | in |
| Maximum line length | 164 | ft |
| Maximum height difference, indoor to outdoor | 82 | ft |
| Compressor type | Rotary |
From the Cooper & Hunter spec sheet, with 3 values from the product listing.
Dimensions and weight
8 values| Width | 37.24 | in |
|---|---|---|
| Depth | 16.14 | in |
| Height | 31.89 | in |
| Net weight | 166.7 | lb |
| Shipping width | 42.91 | in |
| Shipping depth | 19.68 | in |
| Shipping height | 34.84 | in |
| Shipping weight | 176.4 | lb |
From the Cooper & Hunter spec sheet.
Sound and airflow
1 value| Outdoor sound level | 62 | dB(A) |
|---|
From the Cooper & Hunter spec sheet.
Operating range
2 values| Outdoor operating range, cooling | -22 to 122 | °F |
|---|---|---|
| Outdoor operating range, heating | -22 to 75 | °F |
From the Cooper & Hunter spec sheet.
Controls and features
1 value| Zones | Single zone |
|---|
From the Cooper & Hunter spec sheet.
Certifications
2 values| AHRI certified | Yes |
|---|---|
| AHRI reference numbers | 215864122 |
From the Cooper & Hunter spec sheet.
Approved pairings
Indoor heads approved for this unit.
This outdoor unit runs one indoor head. These 3 heads are approved for it by Cooper & Hunter.
| Unit | Size |
|---|---|
 PEAQ 30K Air HandlerCH-PQ33AHU | 30K BTU |
 A-Coil Evaporator, 30K to 36K, Body Type BCH-ACL30-36B | Not listed |
| A-Coil Evaporator, 30K to 36K, Body Type CCH-ACL30-36C | Not listed |
Rebates
Heat pump rebates by ZIP code
Utility and state programs change by ZIP code and can be large. Enter yours to see the programs on file for this model.
See the biggest programs by stateAbout this outdoor unit
What it is and what it needs.
The Cooper & Hunter PEAQ 30K Outdoor Unit is a 30K BTU single-zone outdoor unit: it runs one matching indoor head. 3 indoor units are approved for it by the manufacturer and listed on this page.
It runs on 208–230 V and uses R454B refrigerant. It is rated SEER2 17.2.
Documents
- Spec sheetCH-PQ33-230VO with CH-ACL30-36C(PDF, opens in a new tab)
- Spec sheetCH-PQ33-230VO with CH-ACL30-36B(PDF, opens in a new tab)
- Spec sheetCH-PQ33-230VO with CH-PQ33AHU(PDF, opens in a new tab)
- Spec sheetCH-PQ33-230VO(PDF, opens in a new tab)
- Installation manualPEAQ AHU (24V)(PDF, opens in a new tab)
- Installation manualPEAQ Heater(PDF, opens in a new tab)
- Document(PDF, opens in a new tab)
- DocumentPEAQ Lealfet 2025(PDF, opens in a new tab)
- Document(PDF, opens in a new tab)
Call before you order.Sizing, pairings, line set lengths and rebates.
Monday to Friday, 8 AM to 5 PM Central
We are in Mountain Grove, Missouri.
Send a messageQuestions
Before you order
Anything else, call (417) 812-0015. Monday to Friday, 8 AM to 5 PM Central.
Is this the whole system?
This is the outdoor unit (condenser). Pair it with one of the approved indoor units listed above. Line sets and brackets are quoted with your order; call and we add them.
Can I install it myself?
Mounting, wiring and running the line set are within reach of a capable DIYer. The refrigerant connection and vacuum should be done by a licensed HVAC technician in most states, and manufacturer warranties usually require it. We can point you to an installer in your area.
What if I am not sure about the size?
Room size, ceiling height, insulation, windows and sun exposure all change the answer. Call (417) 812-0015 with the room details and we will confirm the BTU rating before you order.
Can I return it?
No. All sales are final, so size it right first: the builder and the sizing guide are free, and a person confirms the pairing on every order. If anything arrives damaged, we handle the claim for you, and defects are covered by the manufacturer warranty.
What refrigerant does it use?
R454B. Match it to any existing equipment or line set you plan to reuse; refrigerants are not interchangeable.
