Heats and coolsR454B
Hyper Heat, Multi-zone outdoor unit

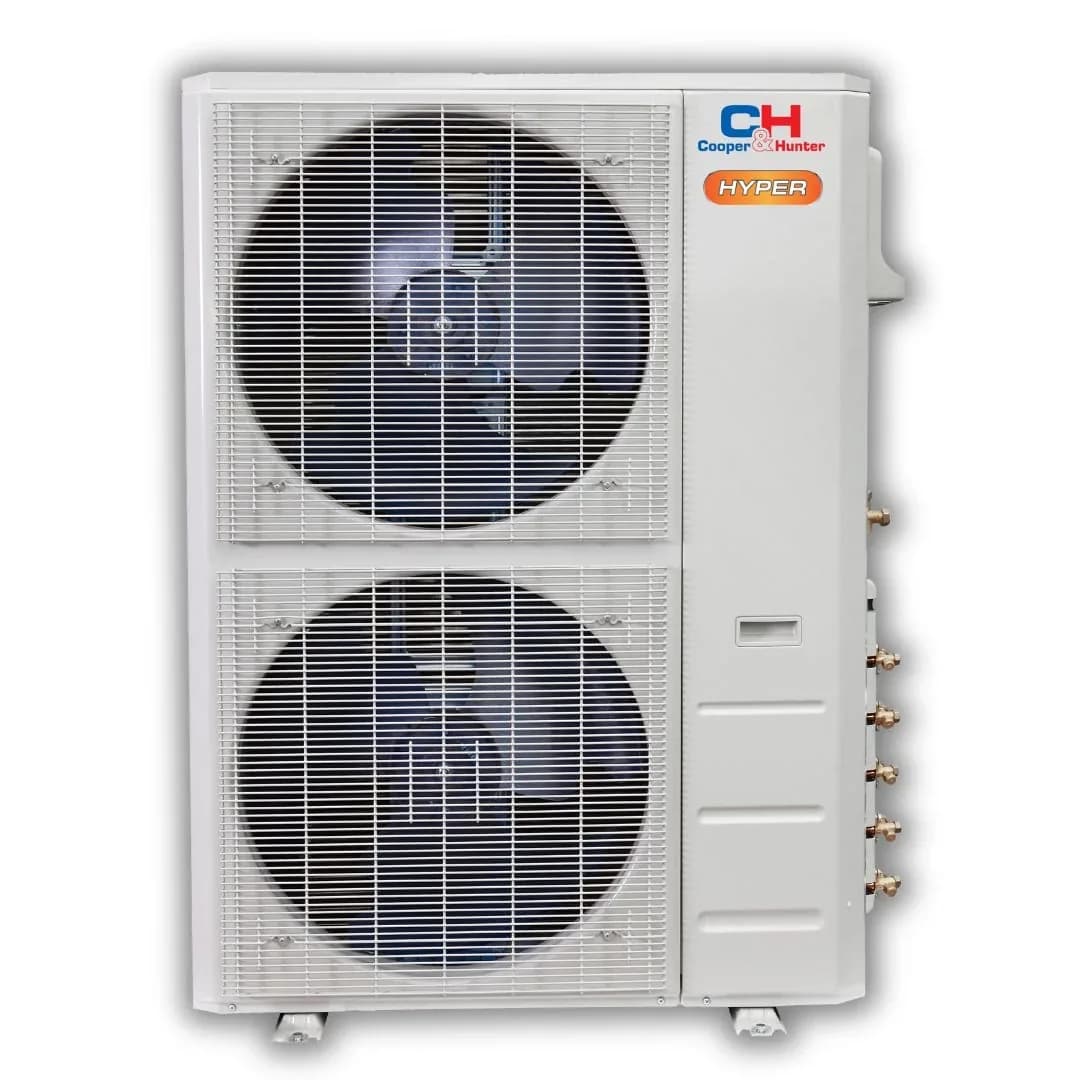

Hyper Heat 19K Multi-Zone Outdoor Unit, with Shut-off Valves
A person checks every order before it ships.
Rebates for this unitUtility and state programs change by ZIP code.
- Ships to all 50 states. If anything arrives damaged, we handle the claim.
- New units from an authorized Cooper & Hunter dealer, with the full factory warranty.
- All sales are final. Not sure about the size? Call (417) 812-0015 before you order.
Rated performance
From the spec sheet on file for model CH-RVHP19M-230VO. Every other figure is in the full spec sheet below.
- Capacity
19,000BTU/h
Cooling runs 5,400 to 28,000 BTU/h
- Zones
3
Runs up to 3 indoor heads
- Efficiency
25SEER2
Bar on the catalog's 14 to 28 range
- Sound
61.5dB(A)
Outdoor unit, at full speed
- Heating
−22°F
Lowest outdoor temperature, manufacturer rating
- HSPF2
10.4
Heating efficiency, region IV
- Cooling
- −22 to 122 °F
- Heating
- −22 to 75 °F
Specifications
The full spec sheet
Every value on file for model CH-RVHP19M-230VO, with units.
Capacity
6 values| Nominal capacity | 19,000 | BTU/h |
|---|---|---|
| Rated cooling capacity | 19,000 | BTU/h |
| Cooling capacity range | 5,400 to 28,000 | BTU/h |
| Rated heating capacity (47°F) | 20,000 | BTU/h |
| Heating capacity range (47°F) | 5,700 to 27,000 | BTU/h |
| Heating capacity at 5°F | 19,000 | BTU/h |
From the Cooper & Hunter spec sheet, with 2 values from the product listing.
Efficiency
5 values| SEER2 | 25 | |
|---|---|---|
| EER2 | 15 | |
| HSPF2 (Region IV) | 10.4 | |
| HSPF2 (Region V, cold climate) | 8.5 | |
| COP at 47°F | 4 | W/W |
From the Cooper & Hunter spec sheet.
Electrical
8 values| Voltage | 208/230 | V |
|---|---|---|
| Phase | 1 | ph |
| Frequency | 60 | Hz |
| Operating voltage range | 187 to 253 | V |
| Minimum circuit ampacity (MCA) | 17.5 | A |
| Maximum fuse / breaker size | 20 | A |
| Rated cooling current | 5.6 | A |
| Rated heating current | 6.5 | A |
From the Cooper & Hunter spec sheet.
Refrigerant and piping
13 values| Refrigerant | R-454B | |
|---|---|---|
| Factory refrigerant charge | 78.31 | oz |
| Pre-charged for line length up to | 75 | ft |
| Additional charge per extra foot | 0.16 | oz/ft |
| Additional charge per extra foot, 1/4 in. liquid line | 0.16 | oz/ft |
| Additional charge per extra foot, 3/8 in. liquid line | 0.32 | oz/ft |
| Liquid line connections | 3 × 1/4 in | |
| Gas line connections | 3 × 3/8 in | |
| Indoor unit connections | 3 | |
| Maximum line length | 196.8 | ft |
| Maximum line length per indoor unit | 98.4 | ft |
| Maximum height difference, indoor to outdoor | 49.2 | ft |
| Maximum height difference between indoor units | 33 | ft |
From the Cooper & Hunter spec sheet, with 2 values from the product listing.
Dimensions and weight
8 values| Width | 37.24 | in |
|---|---|---|
| Depth | 16.14 | in |
| Height | 31.89 | in |
| Net weight | 137.3 | lb |
| Shipping width | 42.91 | in |
| Shipping depth | 19.68 | in |
| Shipping height | 34.84 | in |
| Shipping weight | 148.2 | lb |
From the Cooper & Hunter spec sheet.
Sound and airflow
1 value| Outdoor sound level | 61.5 | dB(A) |
|---|
From the Cooper & Hunter spec sheet.
Operating range
2 values| Outdoor operating range, cooling | -22 to 122 | °F |
|---|---|---|
| Outdoor operating range, heating | -22 to 75 | °F |
From the Cooper & Hunter spec sheet.
Controls and features
2 values| Zones | Multi zone |
|---|---|
| Heating performance | Hyper Heat |
From the product listing.
Certifications
5 values| AHRI certified | Yes |
|---|---|
| AHRI reference numbers | 210799629 (Ducted), 210799628 (Non-Ducted), 210799630 (Mixed) |
| ENERGY STAR Cold Climate | Yes |
| NEEP cold-climate listed | Yes |
| ETL listed | Yes |
From the Cooper & Hunter spec sheet.
Rebates
Heat pump rebates by ZIP code
Utility and state programs change by ZIP code and can be large. Enter yours to see the programs on file for this model.
See the biggest programs by stateAbout this outdoor unit
What it is and what it needs.
The Cooper & Hunter Hyper Heat 19K Multi-Zone Outdoor Unit, with Shut-off Valves is a 19K BTU multi-zone outdoor unit that runs up to 3 indoor heads from one condenser. Call and we confirm the matching indoor unit before you order.
It runs on 208–230 V and uses R454B refrigerant. It is rated SEER2 25. The manufacturer rates it to keep heating at outdoor temperatures down to -22 °F.
Call before you order.Sizing, pairings, line set lengths and rebates.
Monday to Friday, 8 AM to 5 PM Central
We are in Mountain Grove, Missouri.
Send a messageQuestions
Before you order
Anything else, call (417) 812-0015. Monday to Friday, 8 AM to 5 PM Central.
Is this the whole system?
This is the multi-zone outdoor unit. It runs up to 3 indoor heads from the approved list above; each head is ordered separately. Line sets and brackets are quoted with your order; call and we add them.
Can I install it myself?
Mounting, wiring and running the line set are within reach of a capable DIYer. The refrigerant connection and vacuum should be done by a licensed HVAC technician in most states, and manufacturer warranties usually require it. We can point you to an installer in your area.
What if I am not sure about the size?
Room size, ceiling height, insulation, windows and sun exposure all change the answer. Call (417) 812-0015 with the room details and we will confirm the BTU rating before you order.
Can I return it?
No. All sales are final, so size it right first: the builder and the sizing guide are free, and a person confirms the pairing on every order. If anything arrives damaged, we handle the claim for you, and defects are covered by the manufacturer warranty.
What refrigerant does it use?
R454B. Match it to any existing equipment or line set you plan to reuse; refrigerants are not interchangeable.
